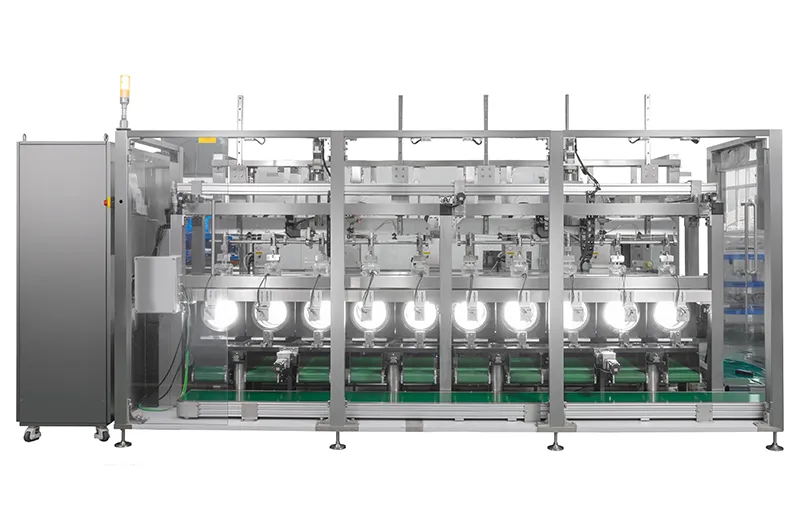

JYWD120X Automatic Visual Inspection (AVI)

Automatic IV Bag Inspection Machine

Pharma visual inspection equipment for detecting various defects of pharmaceutical IV bags ranging from 50ml to 250ml at speeds up to 120 bags/min
Technical Specifications
  • Speed: 120 bags/min
  • Applicable package: 50-250ml IV bags (intravenous bags)
  • Standard inspections: foreign objects, rubber stopper and appearance defects
  • Power: 15kW
  • Machine dimensions (L×W×H): 5000×2400×2000mm
Highlights
  • Fully compliant with FDA and EU pharmaceutical inspection standards
  • High-speed inspection capability of up to 120 IV bags per minute
  • Integrates deep learning with traditional image processing for precise defect detection
  • Features a user-friendly HMI interface with full audit trail of user operations, parameter changes, and production data
  • Built with trusted global components such as Basler industrial cameras and Mitsubishi servo motors
  • All movements are driven by servo motors, using ball screw transmission and guide rail positioning for accurate, stable operation
Applications

The automatic IV bag inspection machine is designed for inspecting visible foreign matter and appearance defects in transparent IV bags containing water-based injectable drugs. It effectively detects contaminants such as glass shards, hair, and white particles, as well as appearance-related issues including rubber stopper irregularities and bag deformation.

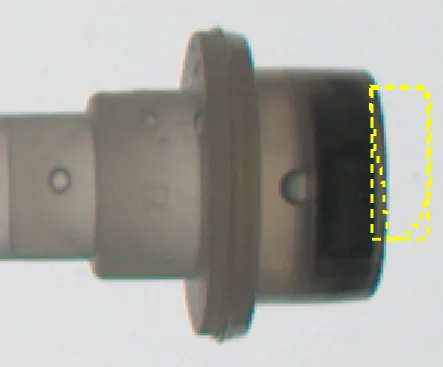

  • Cap defects
    Cap defects
  • Appearance defect-missing tear tab
    Appearance defect-missing tear tab

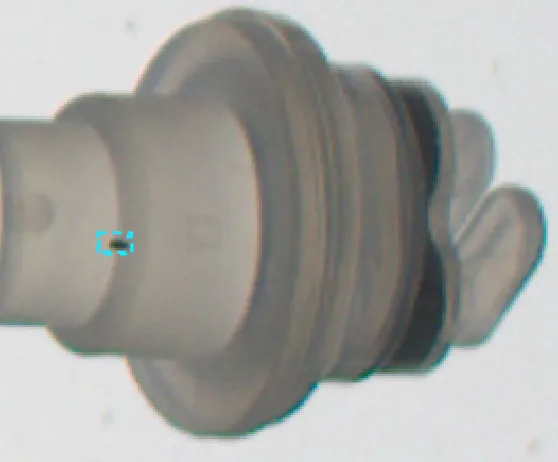

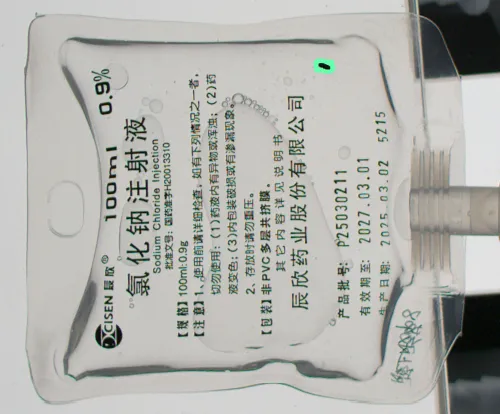

  • Black spots
    Black spots

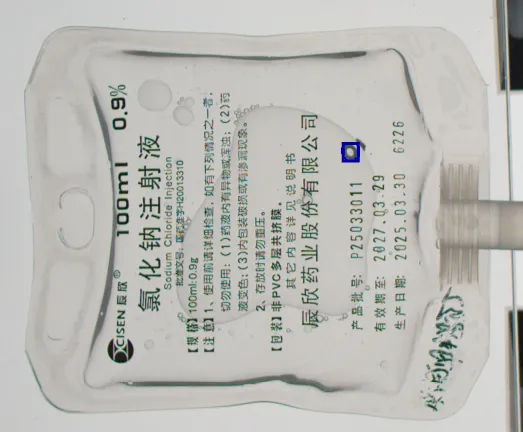

  • Foreign matter
    Foreign matter
Features
  • Independently developed with patented rotating bag technology that ensures complete movement of foreign objects during inspection, minimizing missed detections. The machine holds full intellectual property rights.

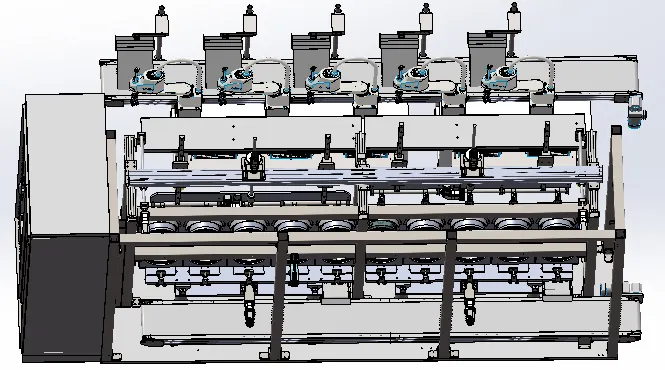

  • Equipped with multiple SCARA robotic arms for bag handling, offering a compact design suitable for pharmaceutical manufacturing environments.
  • Supports a wide range of IV bag specifications without the need for part changes, improving operational efficiency.
  • Uses ultra-high-speed, high-resolution industrial cameras for precise inspection accuracy.
  • Operated via a wireless control panel, allowing full access and control from any position around the machine.
  • All critical electrical components, bearings, and parts are sourced from leading domestic and international brands for enhanced reliability.
Working Principle

The automatic IV bag inspection machine uses machine vision technology to inspect visible foreign objects and appearance defects.

  • Visible foreign object detection:

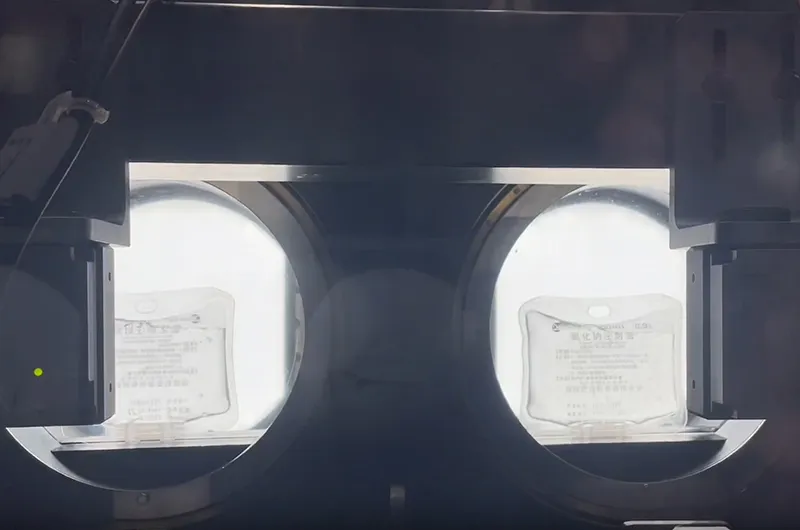

    During inspection, the IV bag rotates with the turntable. Once the turntable stops, the inertia of the liquid inside the bag causes any foreign particles to continue moving. At this moment, the visual inspection system rapidly captures multiple images. These images are analyzed to determine whether the product contains visible foreign matter and meets the quality criteria.

  • Appearance defect detection:

    After being gripped and placed on the inspection platform by a robotic arm, the bag is scanned by industrial cameras. The system captures images of the bag’s exterior and rubber stopper area. Image processing software then analyzes the visuals to detect any appearance defects.

Working Process
  • Products to be inspected

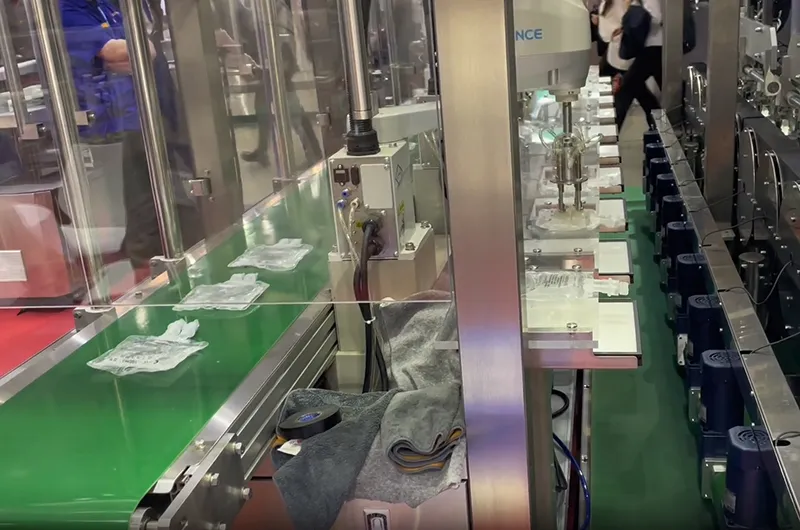

  • Infeed mesh belt
  • Robotic arm sorting
  • Appearance and rubber stopper inspection

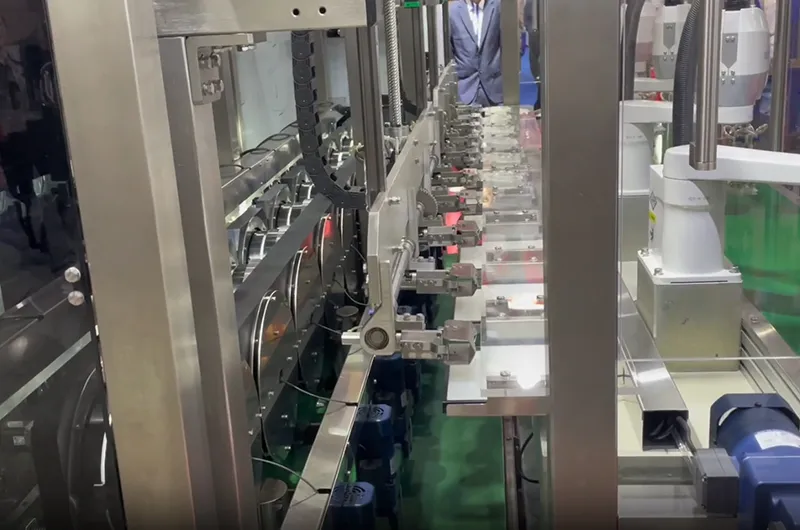

  • Bag pickup by gripper
  • Rotating bag mechanism
  • Foreign object inspection
  • Separate qualified and unqualified products
Related Inspection Equipment
    Automatic BFS Ampoule Inspection Machine
    Automatic BFS Ampoule Inspection Machine
    Automatic Prefilled Syringe Inspection Machine
    Automatic Prefilled Syringe Inspection Machine
    Semi-Automatic Visual Inspection Machine
    Semi-Automatic Visual Inspection Machine
    Lab Visual Inspection Machine
    Lab Visual Inspection Machine
    Automatic Ampoule/Vial Inspection Machine
    Automatic Ampoule/Vial Inspection Machine
    Automatic Vial Freeze-Dried Powder & Residual Oxygen Inspection Machine
    Automatic Vial Freeze-Dried Powder & Residual Oxygen Inspection Machine
    Automatic Compact Ampoule/Vial Inspection Machine
    Automatic Compact Ampoule/Vial Inspection Machine

The machine includes 2 sets of inspection stations and 20 high-resolution cameras. Each sample undergoes over 324 image captures for foreign object inspection and more than 2 images for appearance inspection, ensuring reliable defect detection.

This non-contact inspection system is suitable for various types of IV bags used in the medical field, including infusion bags, soft bags for aqueous injections, and single/double-tube hanging-ear IV bags.

  • High inspection efficiency of up to 120 bags per minute
  • Capable of continuous, stable operation for long durations, saving costs and boosting productivity
  • Accurately detects defects while minimizing false detections, maximizing patient safety in IV bag production
