Visual Inspection Machines
-
| Capacity | Diameter (mm) | Height (mm) | Speed (pcs/min) |
| 5ml | 18.5 | 40 | 100 |
| 10ml | 22.5 | 45 | 100 |
| 15ml | 22.5 | 60 | 100 |
| 20ml | 29.5 | 60 | 90 |

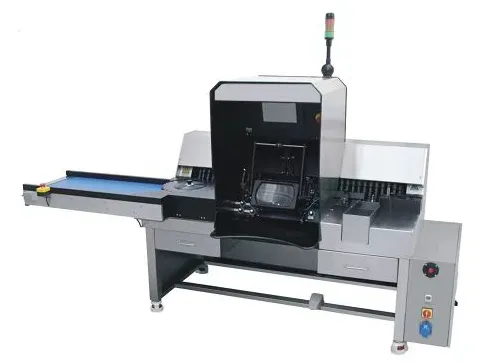

The semi-automatic visual inspection machine is capable of inspecting ampoules, vials, IV bags, and eye drop bottles for both foreign particles and appearance defects.
The semi-automatic visual inspection machine supports both continuous and intermittent transport modes. Bottle count per cycle, interval duration, and continuous speed are all adjustable. Inspected containers rotate continuously with stepless speed control, allowing thorough observation at a 60° angle. A 2x magnifying lens aids detailed inspection, and defective items are rejected automatically based on manual operator commands.

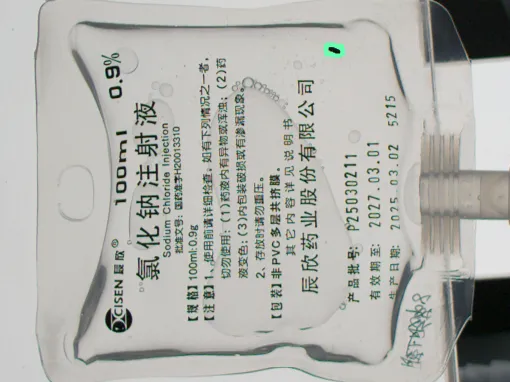

It is suitable for vials, ampoules, eye drop bottles, and PFS syringes. Defect detection includes all visually identifiable foreign particles (e.g., glass shards, fibers, white spots) and appearance defects.
The operator initiates rejection through manual inspection. Once a defect is confirmed, the system automatically removes the defective product from the line.
Yes, the semi-automatic visual inspection machine is equipped with a 2x magnifying lens, allowing reflective observation of critical areas such as the bottle tip, shoulder, body, bottom, and the liquid contents.
