Lab Visual Inspection Machine
Request a Quote

Automatic Visual Inspection (AVI)

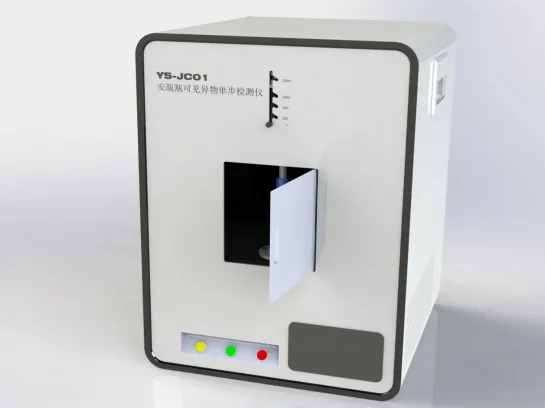

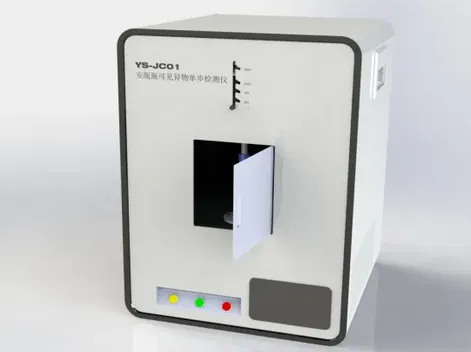

Lab Visual Inspection Machine

Laboratory inspection equipment for the inspection of ampoules, vials and oral liquid bottles
Technical Specifications
  • Speed: 40sec per piece
  • Applicable container: 1-20ml ampoules, vials and oral liquid bottles
  • Standard inspections: visible foreign particles (glass, metal, fiber, hair, white dots, etc.)
  • Particle size: ≥50μm (adjustable)
  • Power: 1kW
  • Voltage: AC220V, 50Hz
  • Worktable height: 900mm
  • Machine dimensions (L×W×H): 420×450×600mm
  • Machine weight: approx. 100kg
Features
  • Stable operation with high inspection accuracy
  • Adjustable detection sensitivity to meet specific testing requirements
  • Quick and easy format change for different container sizes
Working Principle

The lab visual inspection machine uses machine vision technology to identify visible foreign particles. During high-speed rotation, the product is rapidly braked to a stop, allowing an industrial camera to continuously capture multiple images. These images are analyzed and compared by a computer system to determine whether the product meets inspection standards, and to automatically distinguish between qualified and unqualified items.

Working Process
  • Products to be inspected
  • Bottle infeed
  • Photoelectric inspection zone
  • Bottle rotation
  • Braking
  • Image capture
  • The separator classifies qualified and unqualified products based on software instructions
  • Results are displayed on the screen for both qualified and unqualified items.
